A cross platform navigation group

Blog Feature

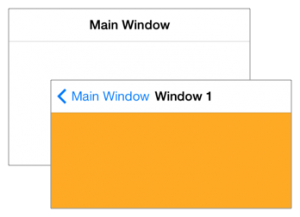

There are many differences between iOS and Android, but perhaps one of the most noticeable is iOS’ Navigation Group. This control is a fundamental part of iOS and a very useful and easy to implement navigation paradigm. It conforms to iOS’ design guidelines and provides you a “free” way of going back to your previous screen.

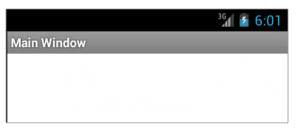

However, when you are developing a cross-platform app, you soon realize that there’s no equivalent on Android, or I should say, there wasn’t one until Android 3.0. If you’re not an Android user, you probably haven’t noticed, mainly because when you create an Android App on Titanium it defaults to API Level 8 (Android 2.2 Froyo), the second most used Android version in the world. If you run a default Android App it will look something like this.

The window on this app is basic, simple, with a thin titlebar with no room to add your navigation button. The workaround I often see is to use views to simulate iOS’ titlebar and back button, and although this solves the problem, leads to an Android app that looks like an iOS app.

In mid 2011 Android 3.0 was released and with it, a brand new UI named Holo, which provides a more mature and standardized way of approaching Android user interfaces. One of the components of Holo is the ActionBar, and this component allows us to provide the same navigation paradigm as the Navigation Controller.

To use the ActionBar on your app, you need to tell Titanium to use and Android API that has these features. The one I use is API Level 14, which corresponds to Android 4.0. To change this, go to your tiapp.xml, scroll to the Android section and inside the android tag add:

14

This tells Titanium that to use the API from Android 4.0 (Ice Cream Sandwich). Then, to use the ActionBar add this also to the Android section:



This sets an Android pre-defined theme. The Theme could be any of the following:

@android:style/Theme.Holo
@android:style/Theme.Holo.Light
@android:style/Theme.Holo.Light.DarkActionBar

Now if you run the same simple app, you’ll see that it now looks like any other modern Android app.

I’ll explain more about the ActionBar in a future blog post.

Using Alloy Magic

This can also be accomplished using Titanium Classic syntax, but with Alloy is much easier. I have created a simple template app for you to use, experiment with and expand, but the real heavy lifting is performed by a small function I call openWin. This function is essentially a cross-platform window opener, which receives a pointer to the iOS Navigation Group and the name of the view file to open. If running on iOS, it opens the view as a new child of the Navigation Group. If running on Android, it simply pays no attention to the Navigation Group and creates a new activity with an up button and an event handler to close the activity.

exports.openWin=function(navGroup,winName){
    var w=Alloy.createController(winName).getView();

    if (OS_ANDROID){
        w.addEventListener('open',function(e){
            if (! w.getActivity()) {
                Ti.API.error("Can't access action bar on a lightweight window.");
            } else {
                actionBar = w.activity.actionBar;
                if (actionBar) {
                    actionBar.displayHomeAsUp=true;
                    actionBar.onHomeIconItemSelected = function() {
                        w.close();
                    };
                }
                w.activity.invalidateOptionsMenu();
            }
        })
        w.open();
    }else{
        navGroup.open(w,{animated:true});
    }
}

Here’s a video of how it looks and behaves, running on Android 4.1, iOS6 and iOS7, all from the same source code.

Notes: By using API Level 14, you’re actually limiting your target users to only those with an Android 4.x device. You could use API Level 11 and target all devices since 3.0, but in this case you’ll have no access the Holo.Light.DarkActionBar theme. More about API Levels at https://developer.android.com/guide/topics/manifest/uses-sdk-element.html.

Devices with Android 2.x have no access to the ActionBar. For these devices I suggest you use the ActionBarClone Alloy Widget that will bring an emulated ActionBar on any Android version.
